BD 90
2 Bed
1 Bath
757 Sq. Ft.
32' x 23' 8"

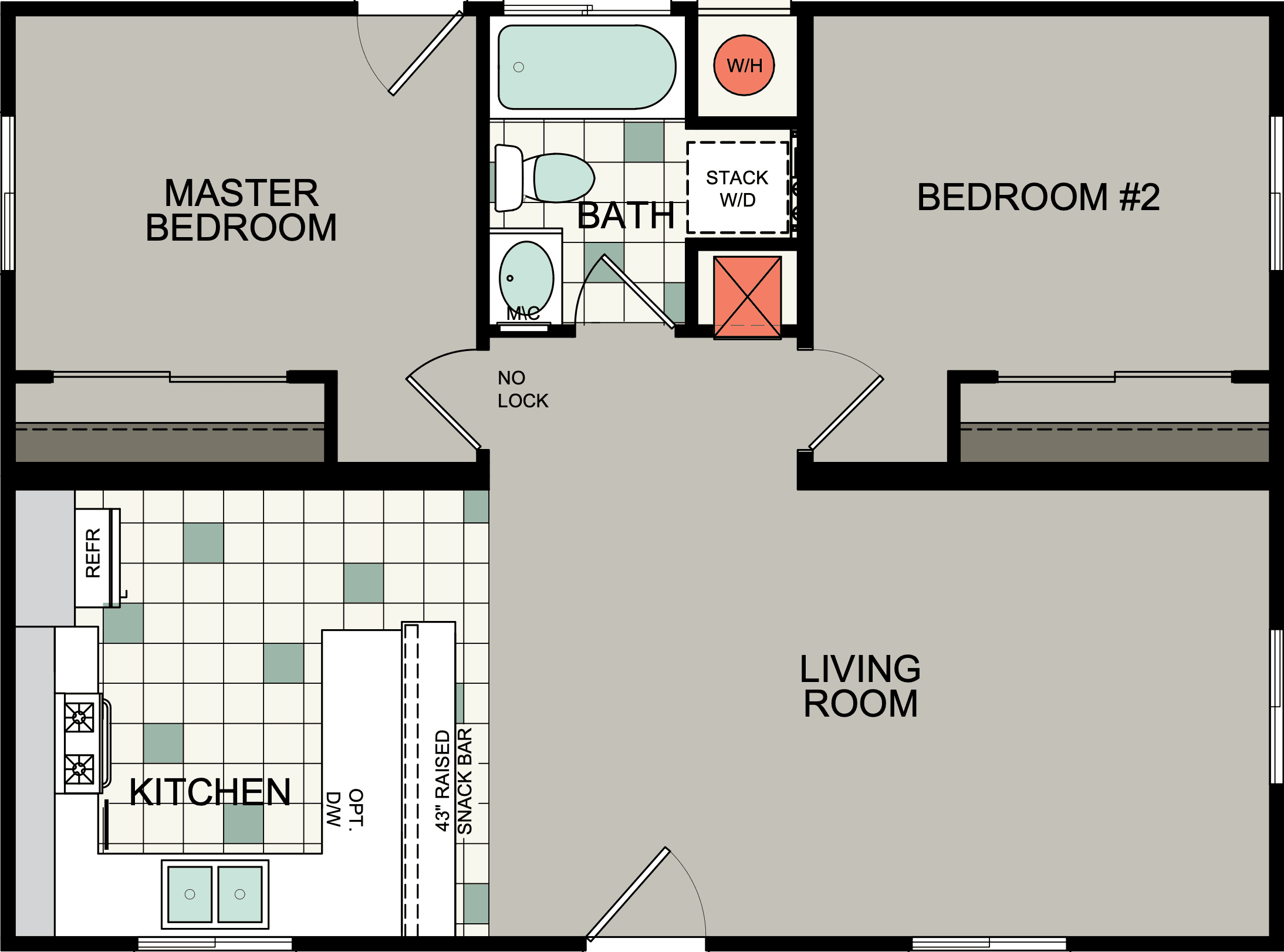

Floor Plan
Property map
Enter your address to check if this home fits on your property
Enter an address to find homes that fit your lot
Exterior & Construction
- California CARB II compliant home
- Includes Silvercrest’s “Silvershield” Seven-Year Warranty (Deductibles apply, claims processed by Cornerstone United Insurance Company)
- 20 lb. roof load
- Insulation - Energy Star Certified
- Floor R-22
- Walls R-13
- Ceilings up to R-33
- All structural lumber used is kiln-dried for higher quality
- 2” x 6” transverse floor joists – 16” on center
- 2” x 4” exterior wall studding – 16” on center
- White vinyl framed, dual glazed windows with low-e coating for energy savings – windows are Energy Star® rated & approved
- PEX water lines
- Water shut-off valves at all sinks & toilets
- 5/8” fire rated drywall ceilings
- ½” drywall on all interior walls
- ¾” OSB floor decking
- 96” sidewall height – per plan
- 100 amp electrical service
- 30-gallon gas water heater
- Gas down-flow furnace with programmable thermostat
- Steel outriggers on all exterior walls for support
- Semi-gloss exterior paint with three color design featuring high-quality PPG paint
- Class “A” fire-rated architectural shingles with Manufacturers 30-Year Limited Warranty
- High wind nailing pattern on all shingles (6 nails per shingles vs. 4 staples from other manufacturers)
- (2) exterior GFI protected patio outlets (locations vary per plan)
- 16” front overhang
- Sidewall eaves per plan (construction modifications can affect standard eave design)
- Craftsman-style shutters (per plan)
- Six-panel 36” fiberglass insulated entry door with deadbolt security lock
- Six-panel 32” fiberglass insulated rear entry door with deadbolt security lock
- All exterior doors with deadbolts feature a metal plate on door jam for added security
- Name brand fiber-cement exterior siding materials with Manufacturers 25-Year Limited Warranty
- 8” hardboard fascia & 4” hardboard corner & window trim
- California CARB II compliant home
- Includes Silvercrest’s “Silvershield” Seven-Year Warranty (Deductibles apply, claims processed by Cornerstone United Insurance Company)
- 20 lb. roof load
- Insulation - Energy Star Certified
- Floor R-22
- Walls R-13
- Ceilings up to R-33
- All structural lumber used is kiln-dried for higher quality
- 2” x 6” transverse floor joists – 16” on center
- 2” x 4” exterior wall studding – 16” on center
- White vinyl framed, dual glazed windows with low-e coating for energy savings – windows are Energy Star® rated & approved
- PEX water lines
- Water shut-off valves at all sinks & toilets
- 5/8” fire rated drywall ceilings
- ½” drywall on all interior walls
- ¾” OSB floor decking
- 96” sidewall height – per plan
- 100 amp electrical service
- 30-gallon gas water heater
- Gas down-flow furnace with programmable thermostat
- Steel outriggers on all exterior walls for support
- Semi-gloss exterior paint with three color design featuring high-quality PPG paint
- Class “A” fire-rated architectural shingles with Manufacturers 30-Year Limited Warranty
- High wind nailing pattern on all shingles (6 nails per shingles vs. 4 staples from other manufacturers)
- (2) exterior GFI protected patio outlets (locations vary per plan)
- 16” front overhang
- Sidewall eaves per plan (construction modifications can affect standard eave design)
- Craftsman-style shutters (per plan)
- Six-panel 36” fiberglass insulated entry door with deadbolt security lock
- Six-panel 32” fiberglass insulated rear entry door with deadbolt security lock
- All exterior doors with deadbolts feature a metal plate on door jam for added security
- Name brand fiber-cement exterior siding materials with Manufacturers 25-Year Limited Warranty
- 8” hardboard fascia & 4” hardboard corner & window trim
Kitchen
- Whirlpool® white finished kitchen appliances
- 30” gas freestanding range
- 18 cubic foot double door refrigerator
- Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
- Adjustable shelves in overhead cabinets finished with white lined cabinet interiors
- 8” deep stainless steel self-rimming sink
- Crown molding on all overhead cabinets
- Toe-kick heat register in base cabinets (per plan)
- Corian® finish countertops with 4” backsplash, 2” front drop edge
- Whirlpool® white finished kitchen appliances
- 30” gas freestanding range
- 18 cubic foot double door refrigerator
- Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
- Adjustable shelves in overhead cabinets finished with white lined cabinet interiors
- 8” deep stainless steel self-rimming sink
- Crown molding on all overhead cabinets
- Toe-kick heat register in base cabinets (per plan)
- Corian® finish countertops with 4” backsplash, 2” front drop edge
Bathroom
- Designer-selected light fixture above sinks
- 60” one-piece fiberglass tub / shower
- Corian® counters with 4” backsplash
- Beveled-edge mirrored medicine cabinet
- China self-rimming sinks
- Satin nickel lighting fixtures
- Towel bar & paper holder – satin nickel finish
- Elongated low-flow water-saving toilets
- Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
- Moen® tub/shower faucet featuring pressure balance valves to help prevent temperature variations, reducing the chance of scalding
- Ceiling vented exhaust fan
- Shaw Challenger vinyl floor covering
- Designer-selected light fixture above sinks
- 60” one-piece fiberglass tub / shower
- Corian® counters with 4” backsplash
- Beveled-edge mirrored medicine cabinet
- China self-rimming sinks
- Satin nickel lighting fixtures
- Towel bar & paper holder – satin nickel finish
- Elongated low-flow water-saving toilets
- Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
- Moen® tub/shower faucet featuring pressure balance valves to help prevent temperature variations, reducing the chance of scalding
- Ceiling vented exhaust fan
- Shaw Challenger vinyl floor covering
Interior
- 8’ Flat interior ceilings throughout
- ½” drywall on walls with square corners
- Orange peel-style textured finish on walls & ceilings
- White walls standard - choice of six additional optional interior wall colors
- Two-panel passage & wardrobe doors throughout
- Dramatic sculptured passage door moldings
- 3 1/2” sculptured floor moldings throughout (optional 5 ¼” also available!)
- (3) mortised hinges on passage doors
- Lever-style passage door locksets – satin nickel finish
- Hand-finished wood cabinets throughout with solid end panel construction
- Soft-close hidden hinges on cabinet doors
- Side-mounted metal drawer guides
- Rocker-style light switches with matching style wall outlets
- All copper wiring throughout
- Metal water shutoff valves at all fixtures
- 2” white faux wood blinds with matching wood valance
- Plumb/wire for washer & gas dryer
- USB receptacle in kitchen area for easy recharging of electronic devices
- White wood window casings throughout (except bath areas)
- Group 1 Mohawk® carpet in living areas
- ½” rebond carpet pad
- Shaw Challenger vinyl flooring in kitchen, baths, utility, nook & dining areas (per plan)
- Vinyl entry floor
- Designer-selected lighting in designated areas
- Switched wall outlet for lamp lighting in living room and all bedrooms (wall outlet designated by being installed upside down for easy identification)
- LED can lights in kitchen (2), hall, utility & walk-in wardrobes
- 8’ Flat interior ceilings throughout
- ½” drywall on walls with square corners
- Orange peel-style textured finish on walls & ceilings
- White walls standard - choice of six additional optional interior wall colors
- Two-panel passage & wardrobe doors throughout
- Dramatic sculptured passage door moldings
- 3 1/2” sculptured floor moldings throughout (optional 5 ¼” also available!)
- (3) mortised hinges on passage doors
- Lever-style passage door locksets – satin nickel finish
- Hand-finished wood cabinets throughout with solid end panel construction
- Soft-close hidden hinges on cabinet doors
- Side-mounted metal drawer guides
- Rocker-style light switches with matching style wall outlets
- All copper wiring throughout
- Metal water shutoff valves at all fixtures
- 2” white faux wood blinds with matching wood valance
- Plumb/wire for washer & gas dryer
- USB receptacle in kitchen area for easy recharging of electronic devices
- White wood window casings throughout (except bath areas)
- Group 1 Mohawk® carpet in living areas
- ½” rebond carpet pad
- Shaw Challenger vinyl flooring in kitchen, baths, utility, nook & dining areas (per plan)
- Vinyl entry floor
- Designer-selected lighting in designated areas
- Switched wall outlet for lamp lighting in living room and all bedrooms (wall outlet designated by being installed upside down for easy identification)
- LED can lights in kitchen (2), hall, utility & walk-in wardrobes
Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.
BD 90
2 bedrooms (sleeps 2-4)
1 full bathroom
757 sq. ft.
32' x 23' 8"
ADU eligible
BD 90
2 bedrooms (sleeps 2-4)
1 full bathroom
757 sq. ft.
32' x 23' 8"
ADU eligible
Bradford standard features
Construction
- California CARB II compliant home
- Includes Silvercrest’s “Silvershield” Seven-Year Warranty (Deductibles apply, claims processed by Cornerstone United Insurance Company)
- 20 lb. roof load
- Insulation - Energy Star Certified
- Floor R-22
- Walls R-13
- Ceilings up to R-33
- All structural lumber used is kiln-dried for higher quality
- 2” x 6” transverse floor joists – 16” on center
- 2” x 4” exterior wall studding – 16” on center
- White vinyl framed, dual glazed windows with low-e coating for energy savings – windows are Energy Star® rated & approved
- PEX water lines
- Water shut-off valves at all sinks & toilets
- 5/8” fire rated drywall ceilings
- ½” drywall on all interior walls
- ¾” OSB floor decking
- 96” sidewall height – per plan
- 100 amp electrical service
- 30-gallon gas water heater
- Gas down-flow furnace with programmable thermostat
- Steel outriggers on all exterior walls for support
- California CARB II compliant home
- Includes Silvercrest’s “Silvershield” Seven-Year Warranty (Deductibles apply, claims processed by Cornerstone United Insurance Company)
- 20 lb. roof load
- Insulation - Energy Star Certified
- Floor R-22
- Walls R-13
- Ceilings up to R-33
- All structural lumber used is kiln-dried for higher quality
- 2” x 6” transverse floor joists – 16” on center
- 2” x 4” exterior wall studding – 16” on center
- White vinyl framed, dual glazed windows with low-e coating for energy savings – windows are Energy Star® rated & approved
- PEX water lines
- Water shut-off valves at all sinks & toilets
- 5/8” fire rated drywall ceilings
- ½” drywall on all interior walls
- ¾” OSB floor decking
- 96” sidewall height – per plan
- 100 amp electrical service
- 30-gallon gas water heater
- Gas down-flow furnace with programmable thermostat
- Steel outriggers on all exterior walls for support
Exterior
- Semi-gloss exterior paint with three color design featuring high-quality PPG paint
- Class “A” fire-rated architectural shingles with Manufacturers 30-Year Limited Warranty
- High wind nailing pattern on all shingles (6 nails per shingles vs. 4 staples from other manufacturers)
- (2) exterior GFI protected patio outlets (locations vary per plan)
- 16” front overhang
- Sidewall eaves per plan (construction modifications can affect standard eave design)
- Craftsman-style shutters (per plan)
- Six-panel 36” fiberglass insulated entry door with deadbolt security lock
- Six-panel 32” fiberglass insulated rear entry door with deadbolt security lock
- All exterior doors with deadbolts feature a metal plate on door jam for added security
- Name brand fiber-cement exterior siding materials with Manufacturers 25-Year Limited Warranty
- 8” hardboard fascia & 4” hardboard corner & window trim
- Semi-gloss exterior paint with three color design featuring high-quality PPG paint
- Class “A” fire-rated architectural shingles with Manufacturers 30-Year Limited Warranty
- High wind nailing pattern on all shingles (6 nails per shingles vs. 4 staples from other manufacturers)
- (2) exterior GFI protected patio outlets (locations vary per plan)
- 16” front overhang
- Sidewall eaves per plan (construction modifications can affect standard eave design)
- Craftsman-style shutters (per plan)
- Six-panel 36” fiberglass insulated entry door with deadbolt security lock
- Six-panel 32” fiberglass insulated rear entry door with deadbolt security lock
- All exterior doors with deadbolts feature a metal plate on door jam for added security
- Name brand fiber-cement exterior siding materials with Manufacturers 25-Year Limited Warranty
- 8” hardboard fascia & 4” hardboard corner & window trim
Interior
- 8’ Flat interior ceilings throughout
- ½” drywall on walls with square corners
- Orange peel-style textured finish on walls & ceilings
- White walls standard - choice of six additional optional interior wall colors
- Two-panel passage & wardrobe doors throughout
- Dramatic sculptured passage door moldings
- 3 1/2” sculptured floor moldings throughout (optional 5 ¼” also available!)
- (3) mortised hinges on passage doors
- Lever-style passage door locksets – satin nickel finish
- Hand-finished wood cabinets throughout with solid end panel construction
- Soft-close hidden hinges on cabinet doors
- Side-mounted metal drawer guides
- Rocker-style light switches with matching style wall outlets
- All copper wiring throughout
- Metal water shutoff valves at all fixtures
- 2” white faux wood blinds with matching wood valance
- Plumb/wire for washer & gas dryer
- USB receptacle in kitchen area for easy recharging of electronic devices
- White wood window casings throughout (except bath areas)
- Group 1 Mohawk® carpet in living areas
- ½” rebond carpet pad
- Shaw Challenger vinyl flooring in kitchen, baths, utility, nook & dining areas (per plan)
- Vinyl entry floor
- Designer-selected lighting in designated areas
- Switched wall outlet for lamp lighting in living room and all bedrooms (wall outlet designated by being installed upside down for easy identification)
- LED can lights in kitchen (2), hall, utility & walk-in wardrobes
- 8’ Flat interior ceilings throughout
- ½” drywall on walls with square corners
- Orange peel-style textured finish on walls & ceilings
- White walls standard - choice of six additional optional interior wall colors
- Two-panel passage & wardrobe doors throughout
- Dramatic sculptured passage door moldings
- 3 1/2” sculptured floor moldings throughout (optional 5 ¼” also available!)
- (3) mortised hinges on passage doors
- Lever-style passage door locksets – satin nickel finish
- Hand-finished wood cabinets throughout with solid end panel construction
- Soft-close hidden hinges on cabinet doors
- Side-mounted metal drawer guides
- Rocker-style light switches with matching style wall outlets
- All copper wiring throughout
- Metal water shutoff valves at all fixtures
- 2” white faux wood blinds with matching wood valance
- Plumb/wire for washer & gas dryer
- USB receptacle in kitchen area for easy recharging of electronic devices
- White wood window casings throughout (except bath areas)
- Group 1 Mohawk® carpet in living areas
- ½” rebond carpet pad
- Shaw Challenger vinyl flooring in kitchen, baths, utility, nook & dining areas (per plan)
- Vinyl entry floor
- Designer-selected lighting in designated areas
- Switched wall outlet for lamp lighting in living room and all bedrooms (wall outlet designated by being installed upside down for easy identification)
- LED can lights in kitchen (2), hall, utility & walk-in wardrobes
Kitchen
- Whirlpool® white finished kitchen appliances
- 30” gas freestanding range
- 18 cubic foot double door refrigerator
- Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
- Adjustable shelves in overhead cabinets finished with white lined cabinet interiors
- 8” deep stainless steel self-rimming sink
- Crown molding on all overhead cabinets
- Toe-kick heat register in base cabinets (per plan)
- Corian® finish countertops with 4” backsplash, 2” front drop edge
- Whirlpool® white finished kitchen appliances
- 30” gas freestanding range
- 18 cubic foot double door refrigerator
- Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
- Adjustable shelves in overhead cabinets finished with white lined cabinet interiors
- 8” deep stainless steel self-rimming sink
- Crown molding on all overhead cabinets
- Toe-kick heat register in base cabinets (per plan)
- Corian® finish countertops with 4” backsplash, 2” front drop edge
Bathroom
- Designer-selected light fixture above sinks
- 60” one-piece fiberglass tub / shower
- Corian® counters with 4” backsplash
- Beveled-edge mirrored medicine cabinet
- China self-rimming sinks
- Satin nickel lighting fixtures
- Towel bar & paper holder – satin nickel finish
- Elongated low-flow water-saving toilets
- Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
- Moen® tub/shower faucet featuring pressure balance valves to help prevent temperature variations, reducing the chance of scalding
- Ceiling vented exhaust fan
- Shaw Challenger vinyl floor covering
- Designer-selected light fixture above sinks
- 60” one-piece fiberglass tub / shower
- Corian® counters with 4” backsplash
- Beveled-edge mirrored medicine cabinet
- China self-rimming sinks
- Satin nickel lighting fixtures
- Towel bar & paper holder – satin nickel finish
- Elongated low-flow water-saving toilets
- Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
- Moen® tub/shower faucet featuring pressure balance valves to help prevent temperature variations, reducing the chance of scalding
- Ceiling vented exhaust fan
- Shaw Challenger vinyl floor covering
Mechanical
- All vinyl windows & doors sealed on interior and exterior
- High efficiency 95% UE gas furnace
- Up to R-33 insulation value in ceilings & R-22 in floors
- Set-back programmable thermostat
- Marriage line perimeter gasket seal
- Caulking seal at plumbing & electrical penetrations – walls and floors
- Bottom board penetrations sealed
- Certification and checklist including Energy Star label on the interior of the home
- All vinyl windows & doors sealed on interior and exterior
- High efficiency 95% UE gas furnace
- Up to R-33 insulation value in ceilings & R-22 in floors
- Set-back programmable thermostat
- Marriage line perimeter gasket seal
- Caulking seal at plumbing & electrical penetrations – walls and floors
- Bottom board penetrations sealed
- Certification and checklist including Energy Star label on the interior of the home
Instant Living
San Diego's Premier ADU Builder
Dealer License #: DL1545313
